MemTriq Membrane bioreactor MBR

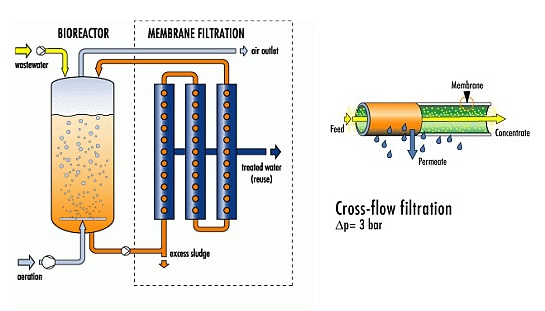

The MemTriq® is based on a cross-flow filtration process. The biomass is filtered in a filter installation next to the bioreactor. The membrane modules are placed in a pressurized circulation loop located outside the bioreactor. Membrane fouling is prevented by the use of the shear forces created by the cross-flow operation of the membranes.

Prerequisites for the application of cross-flow Membrane Bioreactors:

• Concentrated wastewater
• Wastewater that is not easily biodegradable
• Small pore sizes
• Lower flows (< 20m3/h)
